CoilMac-EPI & EPI Plus

4:1 Heavy Duty Electric Coil Punch & Inserter


Now Available in Two Versions!

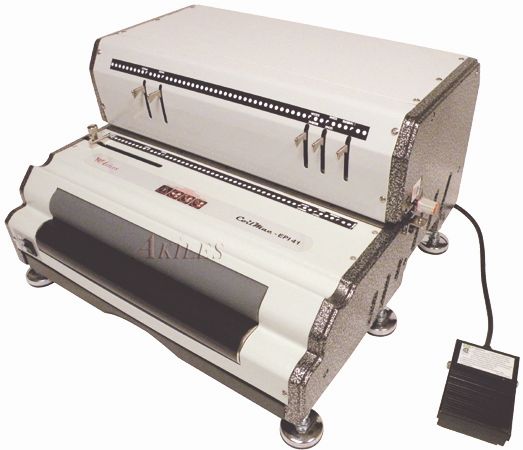

Coilmac EPI

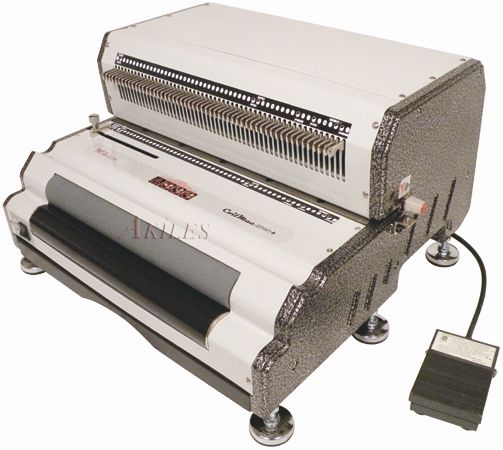

Coilmac EPI+






With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, CoilMac-EPI makes coil binding fast, easy, convenient and professional, making it ideal for commercial volume workloads.



Standard Version Features Plus Version Features
  • Round Holes: Standard 4mm round holes.











  • 5 Disengageable pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.





  • STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.






  • OVAL Holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. When used together with our HD Electric Coil Inserter, it will drastically save your coil insertion time by up to 50%.





  • FULLY Disengageable Pins: For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.





  • LETTER 4:1 pitch (0.248”): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

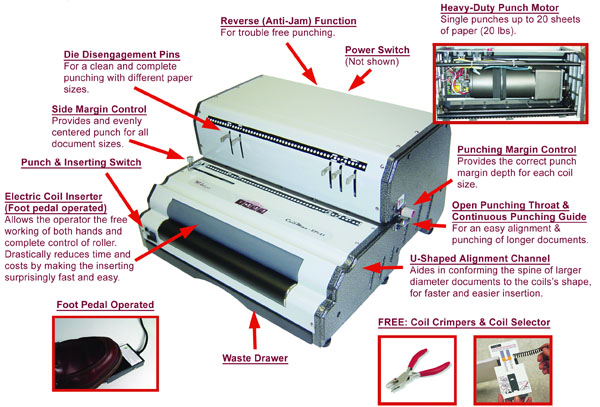

Common Features
  • Side Margin Control: Provides and evenly centered punch for all document sizes.

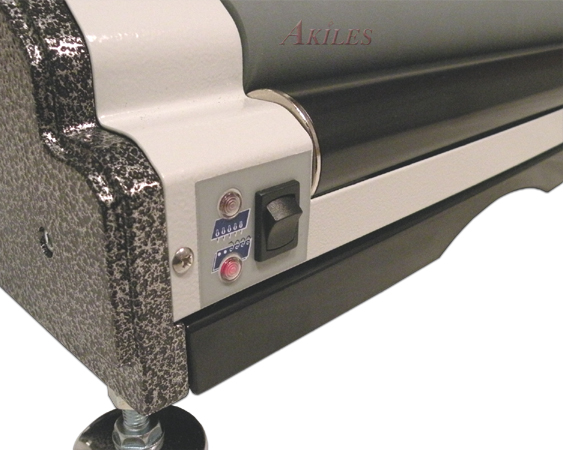

  • Punching & Inserting Switch
  • Electric Coil Inserter: Allows the operator the free working of both hands and complete control of roller. Drastically reduces time and costs by making the inserting surprisingly fast and easy.
  • Foot Pedal Operated
  • Waste Drawer
  • Reverse (Anti-Jam) Function: For trouble free punching.

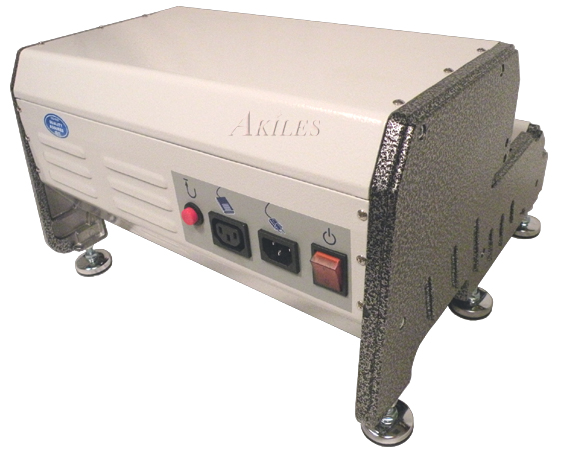

  • Power Switch
  • Heavy-Duty Punch Motor: Single punches up to 20 sheets of paper (20 lbs).

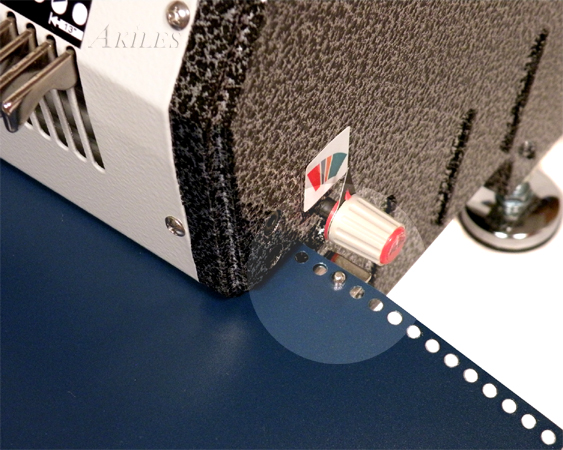

  • Punching Margin Control: Provides the correct punch margin depth for each coil size.
  • Open Punching Throat & Continuous Punching Guide: For an easy alignment & punching of longer documents.
  • U-Shaped Alignment Channel: Aides in conforming the spine of larger diameter documents to the coil's shape, for faster and easier insertion.
  • Fully Featured / Reliable / Easy to Use / Powerful
  • FREE: Coil Crimpers & Coil Selector
  • FREE: Shipping (ground to the 48 contiguous states)

EPI Suggested List $2,495.00



Your Price: $1731.00



EPI PLUS Suggested List $2,595.00



Your Price: $1781.00


Specifications
Model: CoilMac-EPI41 CoilMac-EPI41 Plus
Pitch: Standard 4:1 (0.250") Letter 4:1 (0.248")
Punching & Inserting: Electric
Punch Length: 13" (53 dies) 13" (54 dies)
Hole Punch: Round (4mm) Oval (4mm x 5mm)
Disengaging Dies: 5 out of 53 All 54
Single Punching Capacity: Up to 25 sheets (20 lbs paper)
Binding Capacity: Up to 7/8" (electric)

Up to 2" (Manual)

 Up to 1" (electric)

Up to 2" (Manual)
Weight & Volume: 75 lbs & 2.82 CbFt
Warranty: One Year







All prices subject to change without notice.
